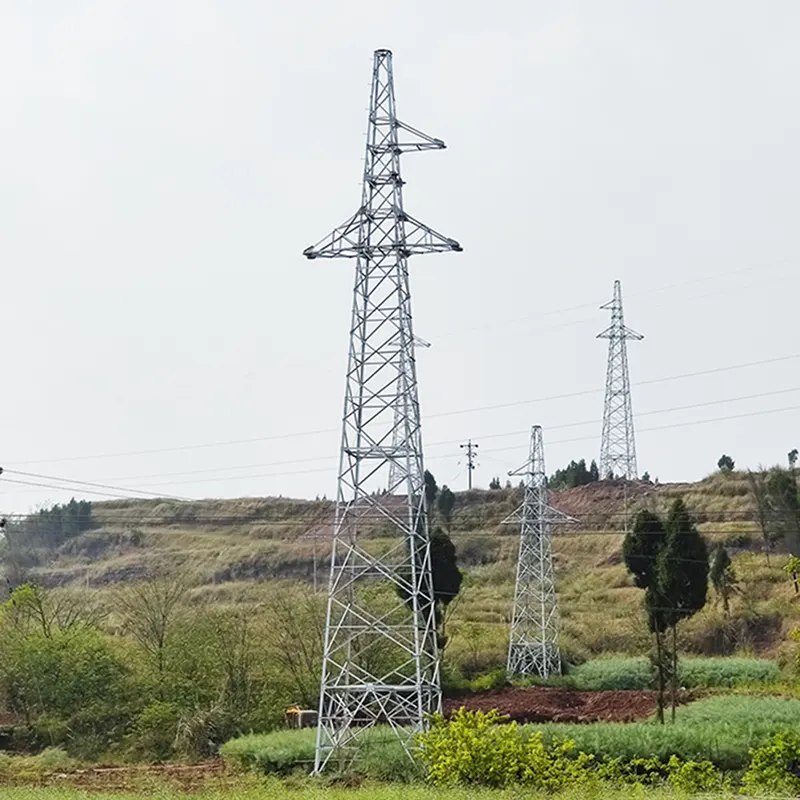

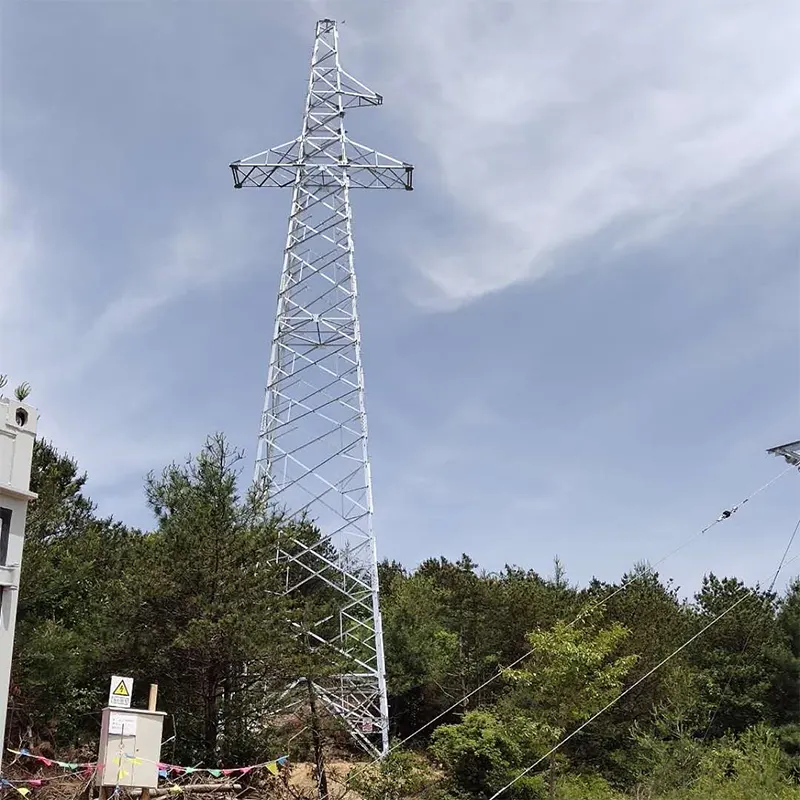

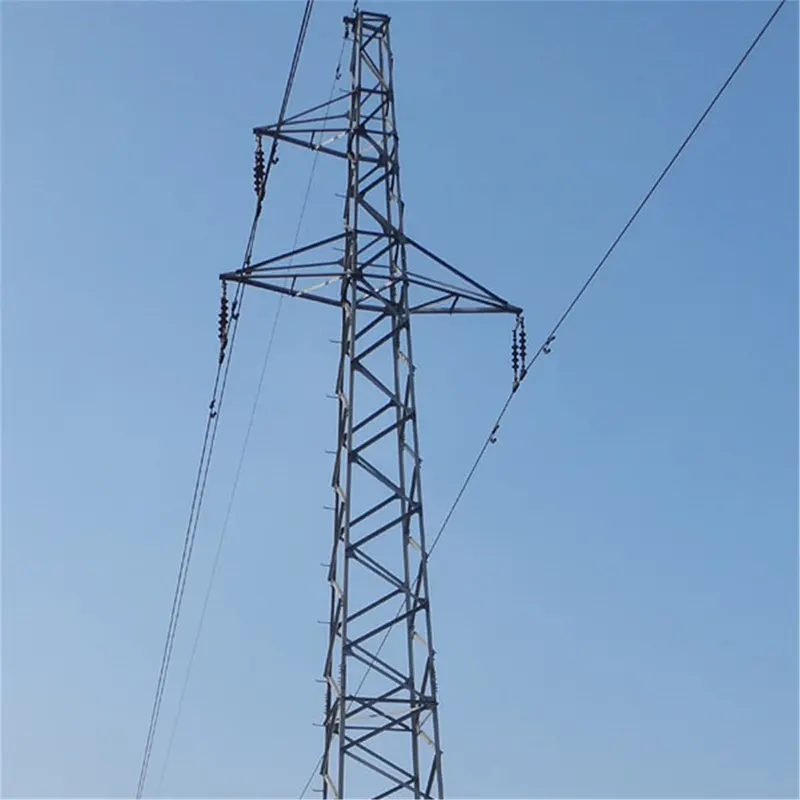

10KV Transmission Line Tower + 11KV
The company has its own galvanizing factory, a professional galvanizing team, and experienced galvanizing teachers to provide guidance, and processes in strict accordance with ISO1461 galvanizing standards.
- Tower Type: Single Circuit Tower
- Voltage: 33kv/35kv
- Material: Q235, Q355, Q420
- Welding: AWS D1.1
- Hot Dip Galvanizing: ASTM A123
- Certificate: GB/T19001-2016/ISO 9001:2015
- Application: Electric Power Transmission Line
Overview
A 10kV Transmission Line Tower & 11kV Transmission Line Tower is a type of structure used for electrical power transmission and distribution; it is a system that supports electrical power transmission lines. Its main function is to provide the framework of overhead electric power distribution network with distribution stations, substations and the consumers. The 10kV transmission line tower is commonly used in overhead transmission systems for power distribution of 10 kV of voltage and therefore demanded in the urban, rural, and industrial regions for power supply.
- Material: Typically made of steel (such as Q235 or Q345 steel) to ensure strength and durability.
- Design: The tower structure is designed based on power transmission requirements, geographical environment, wind loads, and other factors. It can be single-circuit or double-circuit, ensuring stable operation of the transmission lines.
- Environmental Adaptability: Suitable for various climatic and environmental conditions, with strong wind and seismic resistance. It is ideal for mountain, hilly, and plain areas.
- Stability: The design and reinforcement of the tower body provide strong tensile strength, preventing tilting or collapse under high wind speeds or other extreme weather conditions.
- Installation: Pre-fabricated components allow for easy and quick on-site assembly, saving time and reducing labor intensity.
- Height: The tower height can be flexibly adjusted according to terrain and voltage requirements, typically ranging from 10 meters to 50 meters.
- Safety: The design considers factors such as lightning protection and corrosion resistance to ensure long-term operational safety and stability.
- Urban Power Transmission: Provides infrastructure support for the power systems in cities and rural areas.
- Industrial Area Power Transmission: Used to meet the stable power supply needs of industrial parks and large factories.
- Mountainous and Harsh Environments: Suitable for high-altitude, extreme climates, or complex terrains, ensuring uninterrupted power supply.
This product complies with national and international power industry standards and undergoes strict quality testing to ensure high reliability and safety during long-term use. The 10kV transmission line tower is a key infrastructure component in the power transmission system and plays a vital role in ensuring the stable delivery of electricity. In modern power networks, it provides robust support for uninterrupted power transmission
Feature
- Durable and long-lasting: The angular transmission tower model XY-35 is manufactured to withstand any adverse weather conditions and has a service life of more than 30 years under different installation conditions.
- High voltage capability: The product applies to 33kv and 35kv voltage levels, which indicates that its key application is in power transmission.
- Customizable and durable coating: For exhibition of corrosion resistance and long durability the tower body uses hot-dip galvanizing surface treatment.
- Wide range of heights: The product height range for installation is 3-120m to suit various installations.
- Compliance with international standards: All our products are certified with ISO 9001:2015, which is an internationally recognized quality standard as well as user standards
Specification
| Tension: 10kV-500kV | Origin: Sichuan Province, China |
| Brand: Xiangyue | Model: XY-ET |
| Product Name: Transmission Line Tower Angle Lattice Power Steel Tower | Single Piece Gross Weight: 200000.000kg |
| Surface Treatment: Hot-dip Galvanizing | Rated Voltage: 10kV-500kV |
| Certification: ISO9001:2015 | Wind Speed: 120km/h |
| Service Life: More than 30 Yes | Color: Personalized |
| Sales Unit: Single Item | Single Piece Packaging Size: 1150X192X150cm |
