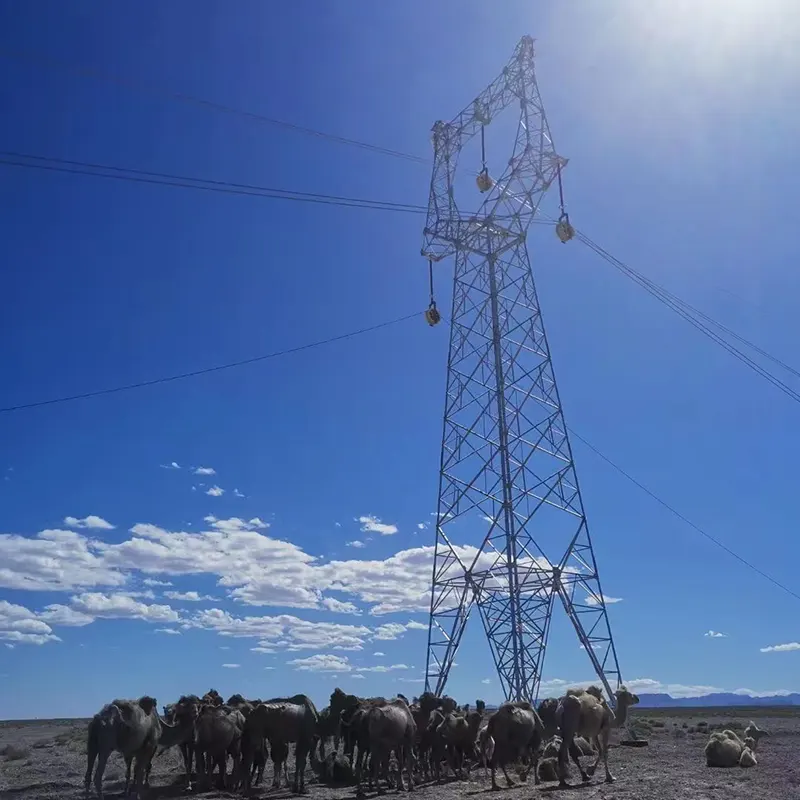

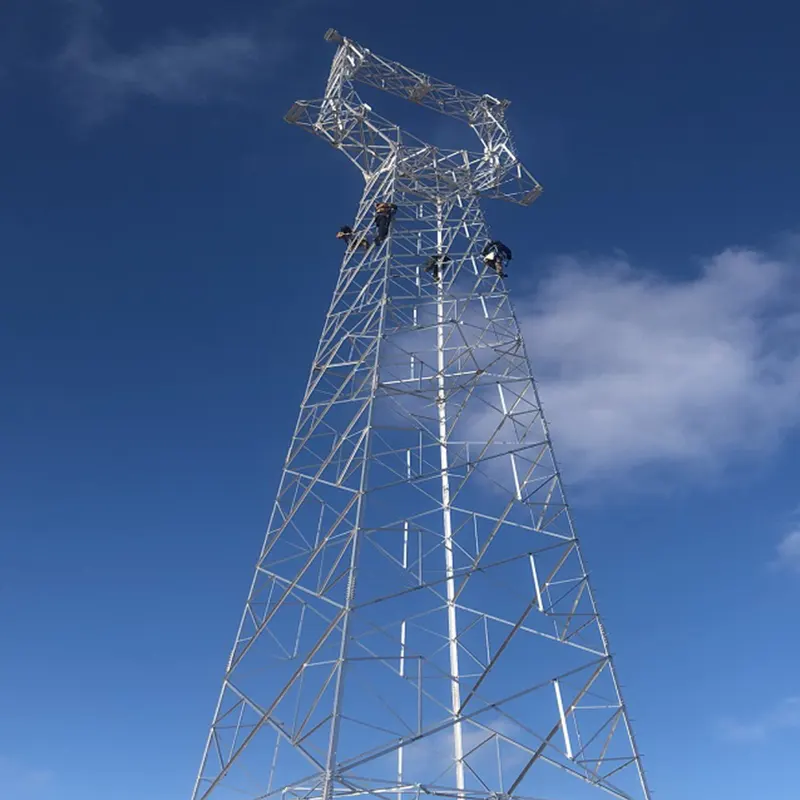

High Voltage Steel Transmission Tower
The company has its own galvanizing factory, a professional galvanizing team, and experienced galvanizing teachers to provide guidance, and processes in strict accordance with ISO1461 galvanizing standards.
- Product Name: Transmission tower
- Voltage: 10kV,35kV,66kV,110kV,132kV,220kV,330kV,500kV
- Raw Material: Q235B/Q355B/Q420B
- Surface Treatment: Hot dip galvanized
- Galvanized Thickness: Average layer thickness 86um
- Paint: Personalized
- Standard Closure: GB/GB. ISO4014-1999
Overview
A High Voltage Steel Transmission Tower is a reinforced structure with the ability to support power transmission lines of high voltage. They are mostly constructed from high strength steel and are employed in transmitting electrical power from one location to another in a safe and sure manner. These structures are intended to support mechanical forces as well as different physical forces like the calms, snow loads, and earthquakes.
- The tower is primarily constructed from galvanized steel (often Q345 or equivalent steel), which ensures both strength and resistance to corrosion, offering a long service life in harsh weather conditions.
- The use of high-strength steel ensures the structure can handle high mechanical loads, particularly in areas where transmission lines are under significant tension.
- High voltage steel transmission towers are designed to provide structural stability, maintaining the required clearance for transmission lines. They are built to withstand high wind loads, seismic activities, and other environmental factors.
- The design is modular, allowing easy customization based on site conditions, terrain, and specific electrical transmission needs.
- Common designs include self-supporting towers, guyed towers, and monopole towers, depending on the geographical conditions and the required strength.
- Tower heights typically range from 20 meters to over 100 meters depending on the voltage level, the geography of the area, and the spacing requirements for transmission lines.
- Higher towers are used for long-distance transmission or in areas with dense vegetation, mountainous regions, or areas with high population density, to ensure clearance and minimize power loss.
- Grounding systems are integrated to protect the tower and transmission lines from electrical faults.
- Lightning protection systems are built into the design to ensure safety from lightning strikes, reducing the risk of electrical hazards.
- Access platforms and ladders allow maintenance personnel to safely perform inspections and repairs.
Feature
Durable and Long-Lasting Construction: Our XyTower galvanized electric pylon is designed for long-term use, with a lifespan of over 30 years, making it an ideal choice for electric power transmission lines. This is especially suitable for users who require a reliable solution for their projects.
Wide voltage range: The product supports a wide voltage range of 10kv-500kv, meeting various user requirements including those specified by the user.
High Quality Certification: Our product is ISO 9001:2015 certified, ensuring compliance with international quality standards and providing security to users who value quality and safety.
Customizable Design: We offer a galvanized finish that can be customized to the customer’s requested color, allowing for a tailored solution to meet specific needs.
Robust Wind Resistance: The product can withstand wind speeds of up to 120 km/h, making it suitable for areas with strong wind conditions, as specified by the user.
Specification
| Tension: 10kV-500kV | Origin: Sichuan Province, China |
| Brand: Xiangyue | Model: XY-ET |
| Product Name: Angle transmission towers | Single Gross Weight: 1000.000 kg |
| Surface Treatment: Hot dip galvanized | Nominal Voltage: 10kV-500kV |
| Certification: ISO9001:2015 | Wind Speed: 120 km/h |
| Service Life: More than 30 Yes | Color: Personalized |
| Sales Unit: A single article | Single Piece Packaging Size: 589*232*231 cm |
