Telecommunication Tower Design
The company has its own galvanizing factory, a professional galvanizing team, and experienced galvanizing experts to provide guidance. All processes strictly adhere to ISO1461 galvanizing standards, ensuring exceptional corrosion resistance and longevity.
- Tower Type: Self-Supporting (Monopole or Lattice) / Guyed Tower
- Material: Q235, Q355, Q420
- Welding: AWS D1.1
- Hot Dip Galvanizing: ASTM A123
- Certificate: GB/T19001-2016/ISO 9001:2015
- Application: Telecommunication Network, Broadcasting, and Wireless Coverage
Overview

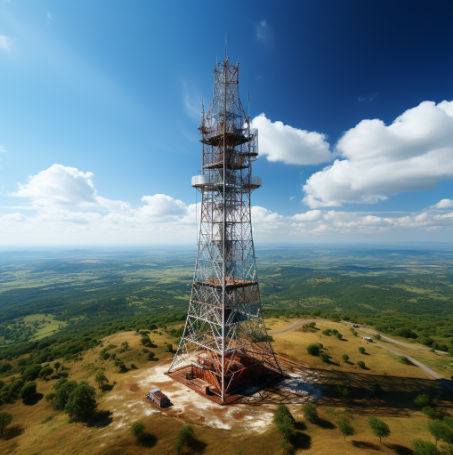

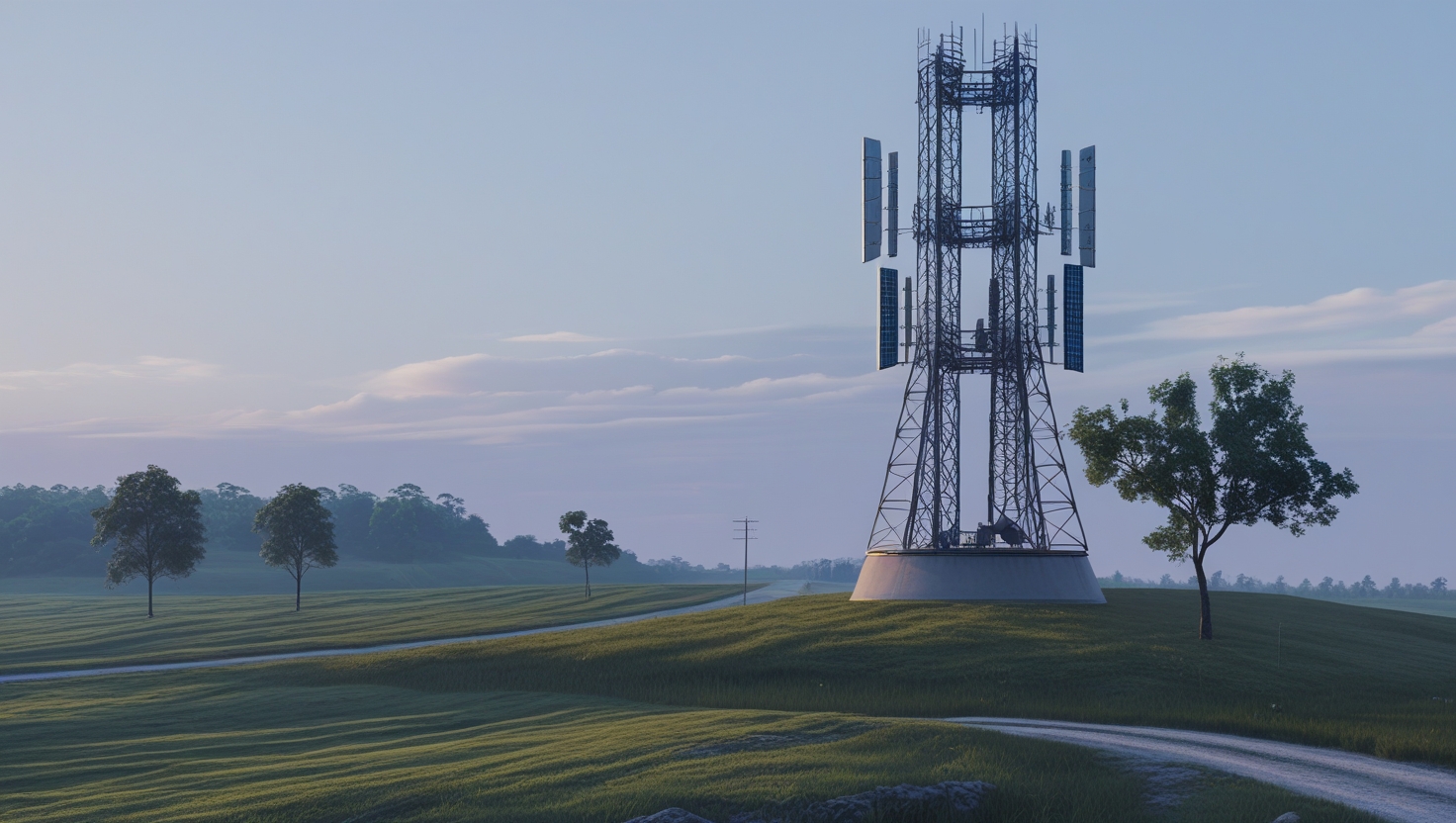

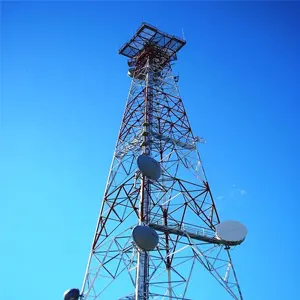

A Telecommunication Tower is a specialized steel structure designed to support various telecom and broadcasting equipment such as antennas, microwave dishes, and satellite receivers. It plays a crucial role in ensuring reliable and widespread communication coverage for mobile networks, radio broadcasting, internet services, and other wireless communication technologies. By elevating equipment above surrounding obstacles, these towers enhance signal strength and reduce interference, enabling optimal network performance.
we focuses on factors like wind load, seismic conditions, frequency range, and equipment weight to guarantee structural stability and safety. The design can vary—self-supporting or guyed—depending on site conditions, height requirements, and local regulations. These towers are commonly used by telecom operators, internet service providers, radio stations, and government agencies for critical communication infrastructure.
- Material: Typically constructed from high-strength steel (e.g., Q235 or Q355) for durability and load-bearing capacity.
- Design: The tower structure is optimized for telecom needs, accommodating antennas, microwave dishes, and other communication equipment. It withstands wind loads, seismic forces, and environmental challenges.
- Environmental Adaptability: Engineered for diverse climates, including coastal regions, mountainous terrain, and high-wind areas. Corrosion-resistant treatments ensure extended service life.
- Stability: Robust lattice or monopole designs provide high structural integrity, minimizing vibration and sway under high wind speeds or additional equipment loads.
- Installation: Pre-fabricated components facilitate quick and efficient assembly on site, reducing installation time and labor costs.
- Height: Can range from 10 meters to over 80 meters, allowing flexibility based on communication coverage and topographical conditions.
- Safety: Features lightning protection, grounding systems, and corrosion-resistant finishes to ensure safe, long-term operation.
- Urban and Rural Coverage: Enhances mobile network coverage for populated areas, suburban communities, and remote villages.
- Broadcasting and Wireless Services: Supports FM, TV broadcasting, and various wireless communication services.
- Emergency and Government Communications: Ensures stable connectivity for critical services in disaster-prone or isolated regions.
This product complies with national and international telecom industry standards, undergoing rigorous inspection to ensure maximum reliability and performance over its operational life. The Telecommunication Tower is a vital part of modern communication networks, enabling seamless voice, data, and broadcasting services. Its design prioritizes safety, durability, and adaptability, making it an ideal choice for diverse geographic locations and operational requirements.
Feature
Exceptional Durability: Our telecommunication tower model XY-TEL is built to withstand harsh weather conditions, offering a service life exceeding 30 years depending on site and maintenance.
Customizable and High-Performance Coating: The hot-dip galvanizing treatment ensures corrosion resistance and reduced maintenance, delivering a long-term, cost-effective solution.
Flexible Tower Heights: Products range from 10m to 80m or more, meeting varied coverage demands and installation constraints.
International Compliance: All designs are ISO 9001:2015 certified, guaranteeing adherence to global quality standards and telecom requirements.
Specification
|
Brand: Xiangyue (XY Tower) |
Origin: Sichuan Province, China |
| Model: XY-TEL | Packaging: Pre-fabricated components, suitable for standard export or customized packaging |
| Product Name: Telecommunication Tower / Steel Lattice Tower | Single Piece Gross Weight: Up to 200,000 kg (varies by tower height and design) |
| Surface Treatment: Hot-Dip Galvanizing | Color: Personalized |
| Rated Wind Speed: 120 km/h (customizable for higher wind speeds) | |
| Service Life: Over 30 Years | |
| Certification: ISO9001:2015 |
